Description

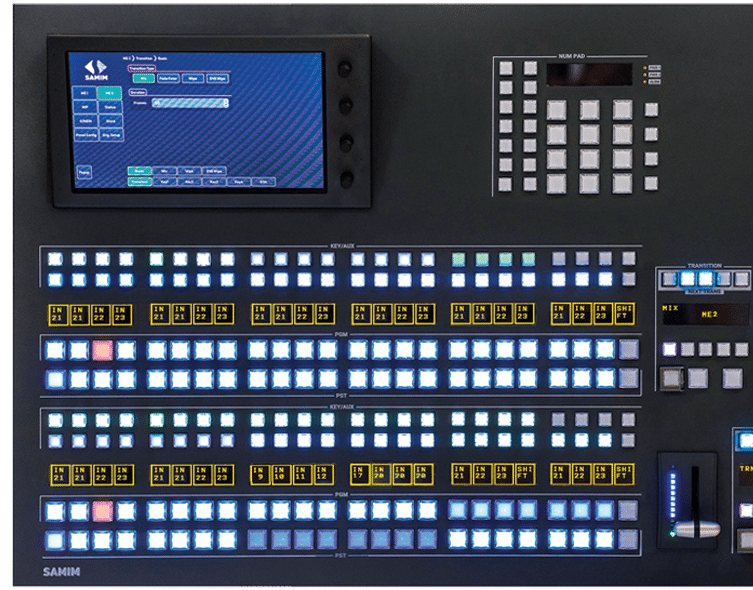

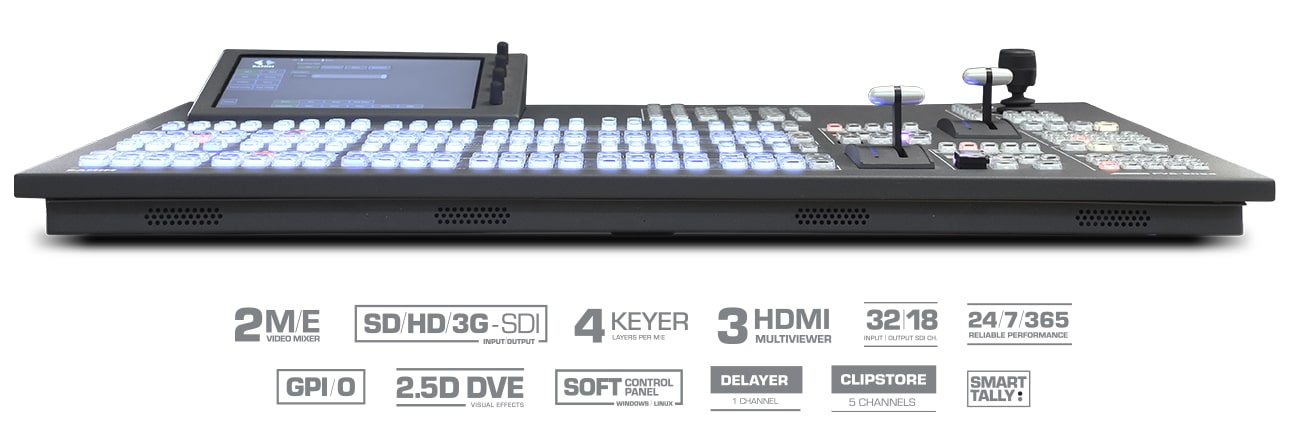

PVS-2024 (4RU 3G-SDI Video Switcher with 2 M/E Control Panel)
| SAMIM PVS-2024 Properties | Description |
| Supported Formats | 576i50, 720p25, 720p50, 1080i50, 1080p25, 1080p50 |
| Video Inputs | Up to 32 x 3G/HD/SD-SDI Inputs 2 x 3G/HD/SD-SDI Emergency Inputs |
| Video Outputs (per M/E) | 2 x Main Program Outputs (One with Bypass Relay) 1 x Preview Output 1 x Clean PGM Output 1 x Clean PVW Output |
| AUX and Multiviewer Outputs | Up to 16 x 3G/HD/SD-SDI Auxiliary Outputs Up to 3 x HDMI Multiviewer Head Outputs |
| Genlock Input/Output | 1 x Black burst (PAL) or Tri-level Sync Signal Input 2 x Black burst (PAL) or Tri-level Sync Signal Output (loop-through) |
| Signal processing | 4: 2: 2 (Y, Cb , Cr) |
| Quantization | 3G/HD/SD-SDI: 10-bit |
| Transition | Mix, Cut, Wipe, 2.5D DVE Wipe, Fade to Black, Fade to Color ( Transitions can be executed by Auto Key or T-Bar Fader ) |
| Keyer | 4 x Keyer ( Linear, Luminance, Chroma & other standard keys, 2.5D DVE Scaler & Rotator Engines ) 1 x Down Stream Key ( Luminance, Linear & other standard keys ) |
| Still/clip store | 1 x Channel Delayer + 5 x Channel Clip-player on shared memory Memory Max capacity: 20-seconds on 3G-SDI or 40-seconds on HD-SDI |
| Multiviewer | 3 x Cascadable heads (8 PIPs per head) |
| Color Correction (optional) | Standard: 4 channels (2 channels per each M/E) Correction mode: Balance, Differential, Sepia Clip mode: YPbPr, RGB |
| Interface | 8 x GPI, 40 x GPO 1 x LAN, 3 x USB ports and 1 x HDMI Output (Used for External Menu Panel) |
| Power Supplies | 1+1 Redundant Power Supplies ( in both Main Frame and Control Panel ) |
Production Switcher (Mixer) Applic1ations
By Samim PVS-2024, TV production staff can sit relaxed and easily control the live video production flows and mix various audio/video contents to provide a rich fnal output.
 |
 |
 |
||

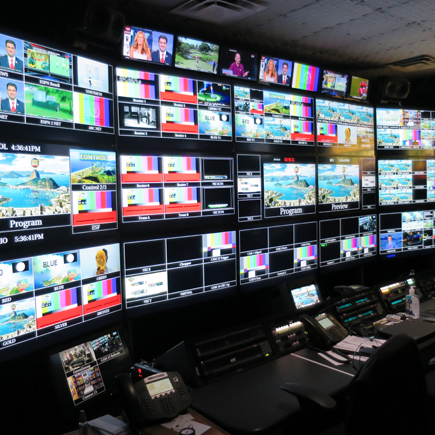

Production Studio Control Rooms |
Live Event Production |
Mobile OB and Production trucks |
||
| Samim PVS-2024 switcher can be used for any broadcasting station, satellite studios, live production control rooms, … It allows you to create high quality live video output with professional effects | Samim PVS-2024 can be used as a stand-alone professional production switcher for live applications where the production devices need to be set up quickly, easily and simply. |
Samim video production switcher is ideal for the mobile production OB vehicles, where the space is limited. The product offers a rich set of features for live or recorded production and reduced amount of equipment.
|
