Description
MCD-1080 (8-Channel Audio Decoder)
- Supports Analog/Digital audio outputs
- Supports Audio MPEG1 Layer2 and HE-AAC decoding
- Up to 8 simultaneous audio decoding
- Configurable audio gain per decoder
- Audio silence and audio level detection per decoder (option)
- Cost-effective and less implementation complexity
- Supports DVB-ASI input
- Web interface remote control
- Remote update
- SNMP support
Applications
Providing fine streaming audio signals for AM/FM Radio Transmitters is essential. This is mainly achieved by using satellite lines but there are high risk of instability and unavailability of signals due to different weather situations.

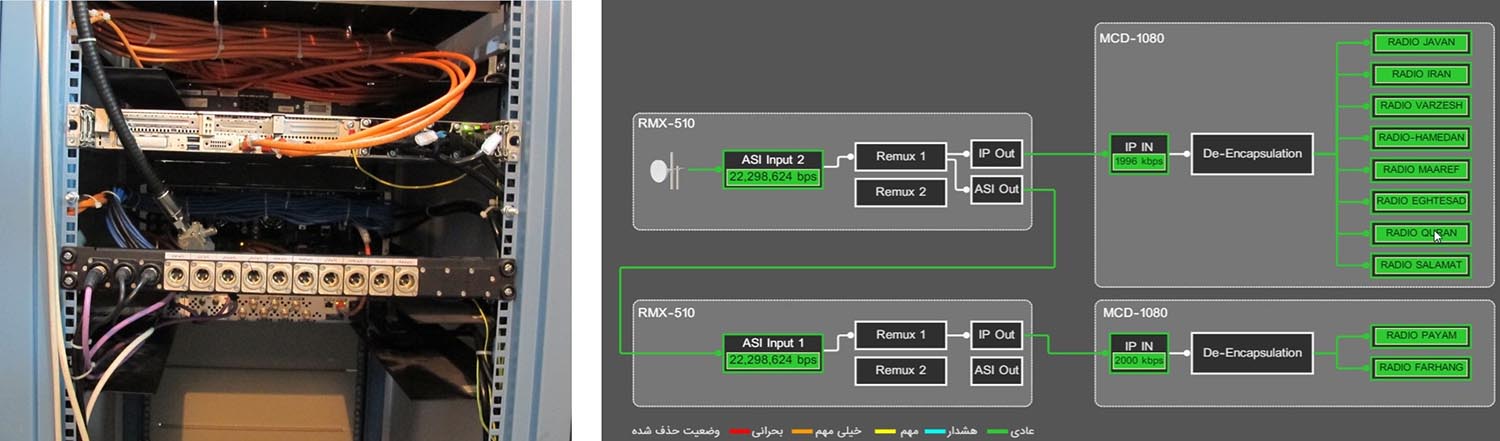

Bu utilizing 2 separate ASI input lines, Samim Audio Decoder can set the desired audio channels as the main input streaming signals to the transmitter. Additionally Samim Audio Decoders can contribute 8 digital audio signal lines to the monitoring stations and the transmitters.
| Order Code | Description | Type | ||||||||||
| MCD-1080 | 8-Channel Audio Decoder Main Board | Main Board | ||||||||||
| MCD-1080-3DRP | Back-panel for MCD-1080 (compatible with SRM-655) | Back-panel | ||||||||||
| MCD-1080-1DRP | Back-panel for MCD-1080 (compatible with SRM-645) | Back-panel | ||||||||||
| MOD-APP-DAO8 | 8-Channel Digital Stereo Audio Output Module | Up to x2 per main board in case of digital output operation | ||||||||||
| MOD-APP-AAO8 | 8-Channel Analog Mono Audio Output Module | x2 per main board is required in case of analog output operation | ||||||||||
